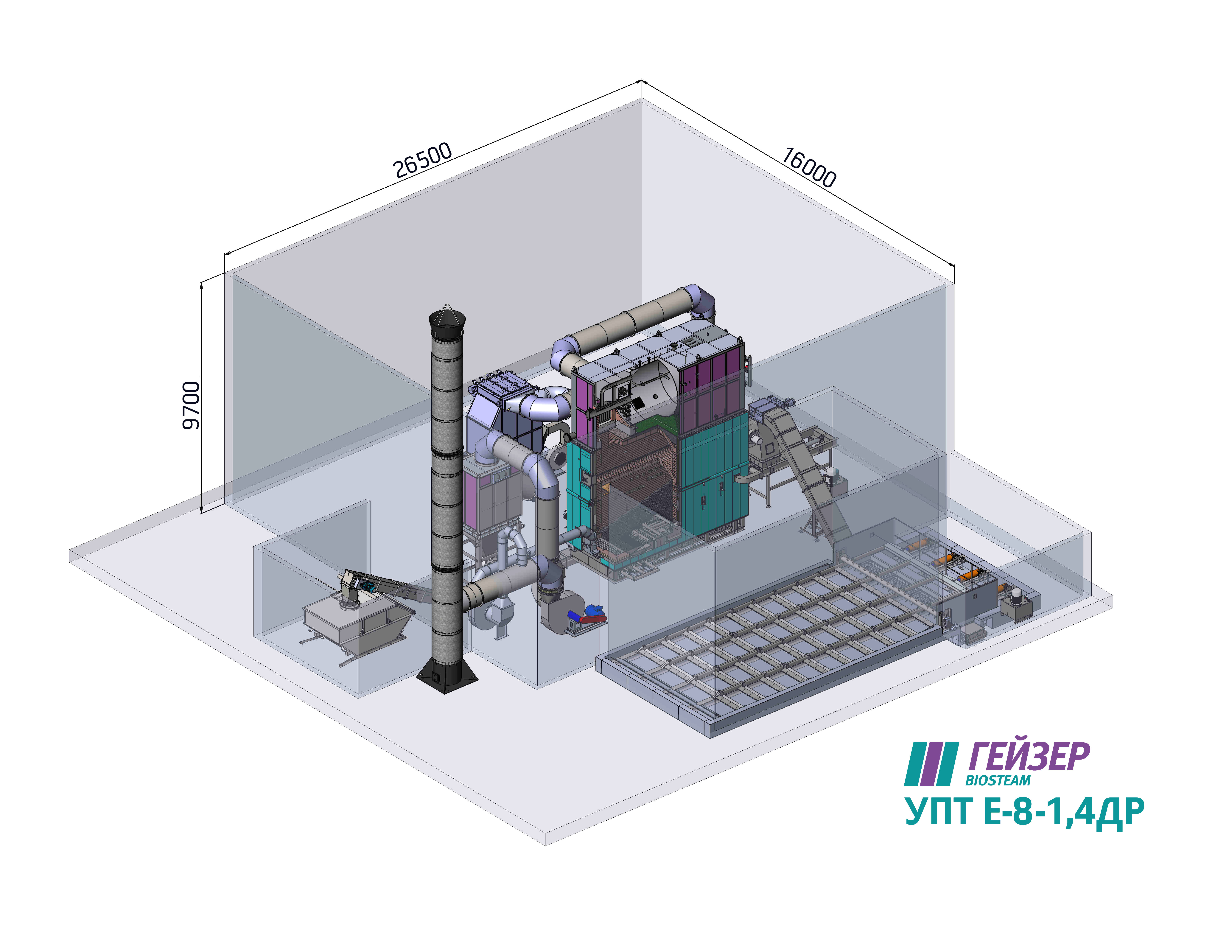

UPT E-8-1,4DR

Name of indicators

Indicators

Boiler steam rate, t/hr (kg/h)

Minimum allowable boiler steam rate, t/hr (kg/h)

8,0 (8000)
4,0 (4000)

Estimated type of fuel (wood chips, sawdust) GOST 33103.1-2014

— relative moisture, %

— calorific value, MJ/kg (kcal/kg)

— fuel consumption, kg/h

Р46А

60

5,7 (1360)*

4310*

Efficiency, up to %

80*

Design pressure, MPa (kgf/cm2)

1,4 (14,0)

Rated steam temperature at the boiler outlet, °C

194

Rated heat carrier flow temperature at the boiler inlet, °C

104

Exit gas temperature (max), °C

200*

Сombustion products oxygen content, %

7,5

Rated voltage of a system, V

380

Installed electric power, kW

44,85

Boiler weight (dry), kg

Furnace weight (liningless), kg

Heat exchanger weight, kg

Afterburning chamber weight (liningless), kg

76000

25800 (14800)

17500

31500 (5400)

Boiler overall dimensions, mm:

Length (L)

Width (W)

Height (H)



8170

4100

8480
