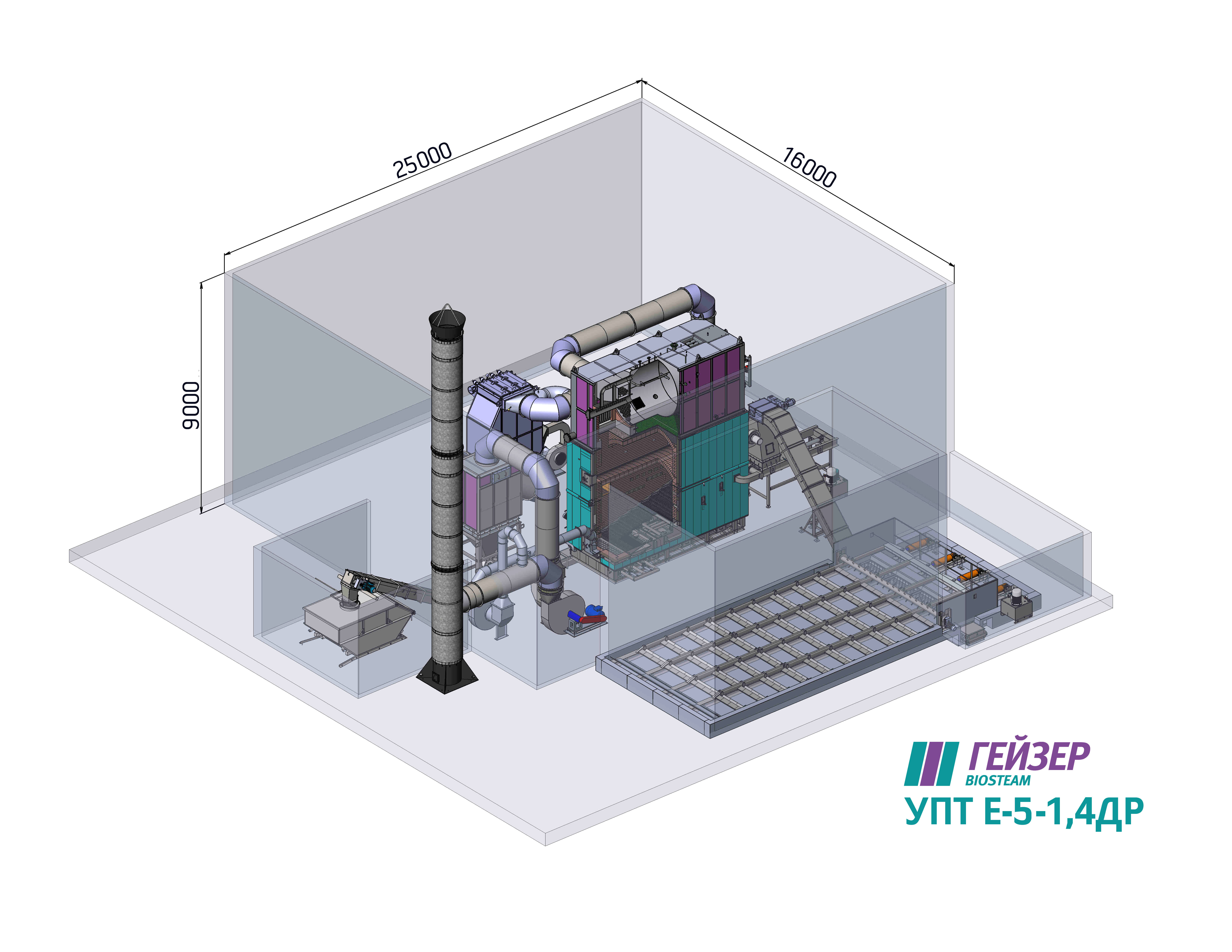

UPT E-5-1,4DR

Name of indicators

Indicators

Boiler steam rate, t/hr (kg/h)

Minimum allowable boiler steam rate, t/hr (kg/h)

5,0 (5000)
2,0 (2000)

Estimated type of fuel (wood chips, sawdust) GOST 33103.1-2014

— relative moisture, %

— calorific value, MJ/kg (kcal/kg)

— fuel consumption, kg/h

Р46А

55

5,9 (1400)*

2690*

Efficiency, up to %

80*

Design pressure, MPa (kgf/cm2)

1,4 (14,0)

Rated steam temperature at the boiler outlet, °C

195

Rated heat carrier flow temperature at the boiler inlet, °C

104

Exit gas temperature (max), °C

200*

Сombustion products oxygen content, %

7,5

Rated voltage of a system, V

380

Installed electric power, kW

29,9

Boiler weight (dry), kg

Furnace weight, kg

Heat exchanger weight, kg

Afterburning chamber weight, kg

53000

19200

12500

21500

Boiler overall dimensions, mm:

Length (L)

Width (W)

Height (H)



6560

3530

7850
