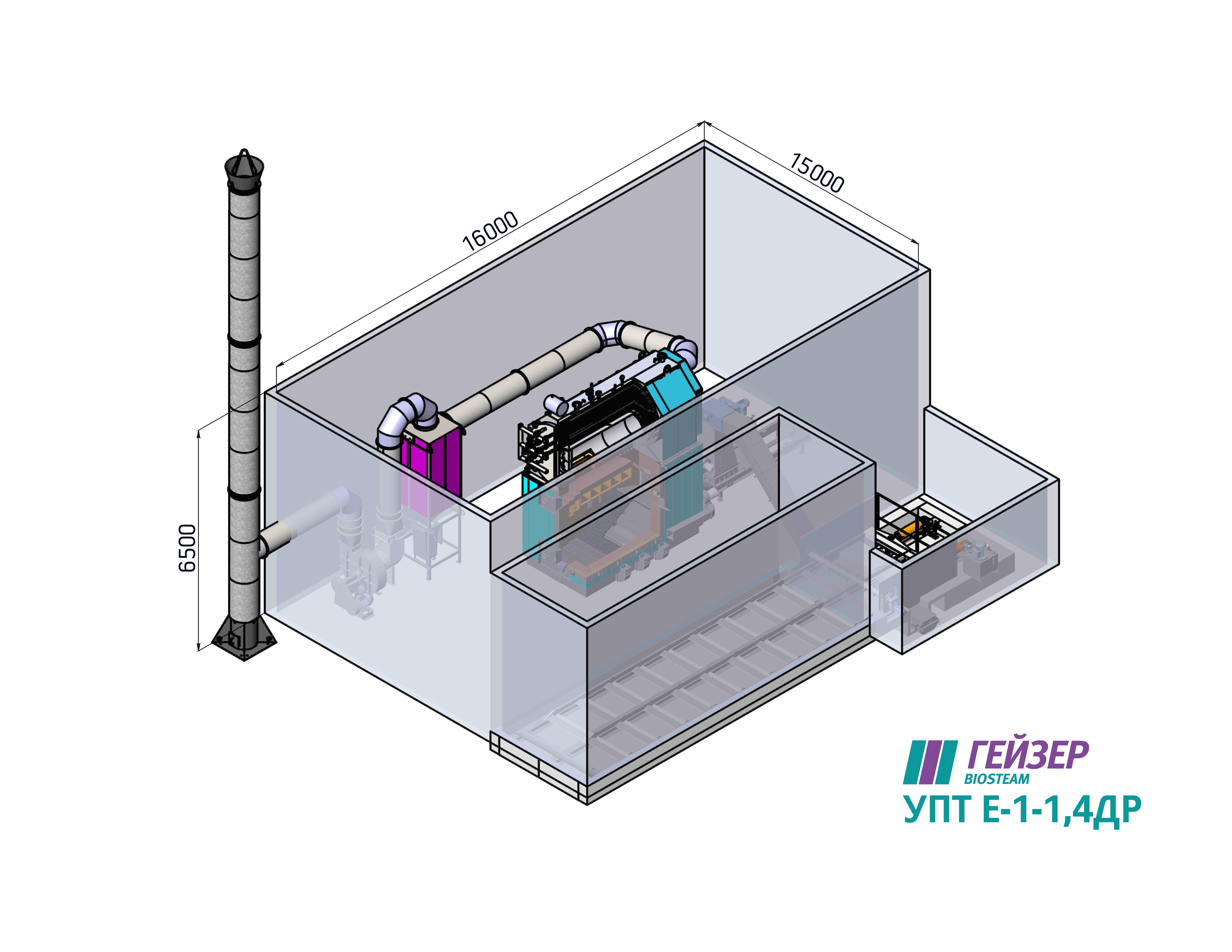

UPT E-1-1,4DR



Name of indicators

Indicators

Boiler steam rate, t/hr (kg/s)

Minimum allowable boiler steam rate, t/hr (kg/s)

1,0 (0,28)
0,5 (0,14)



Estimated type of fuel (wood chips, sawdust) GOST 33103.1-2014

— relative moisture, %

— calorific value, MJ/kg (kcal/kg)

— fuel consumption, kg/h

Р46А

60

5,7( 1360)*

680*

Efficiency, up to %

80*

Design pressure, MPa (kgf/cm2)

1,4 (14,0)

Rated steam temperature at the boiler outlet, °C

194

Rated heat carrier flow temperature at the boiler inlet, °C

104

Exit gas temperature (max), °C

200*

Сombustion products oxygen content, %

7,5

Rated voltage of a system, V

380

Installed electric power, kW

6,0

Boiler weight (dry), kg

16000

Boiler overall dimensions, mm:

Length (L)

Width (W)

Height (H)



4718

2948

5163
