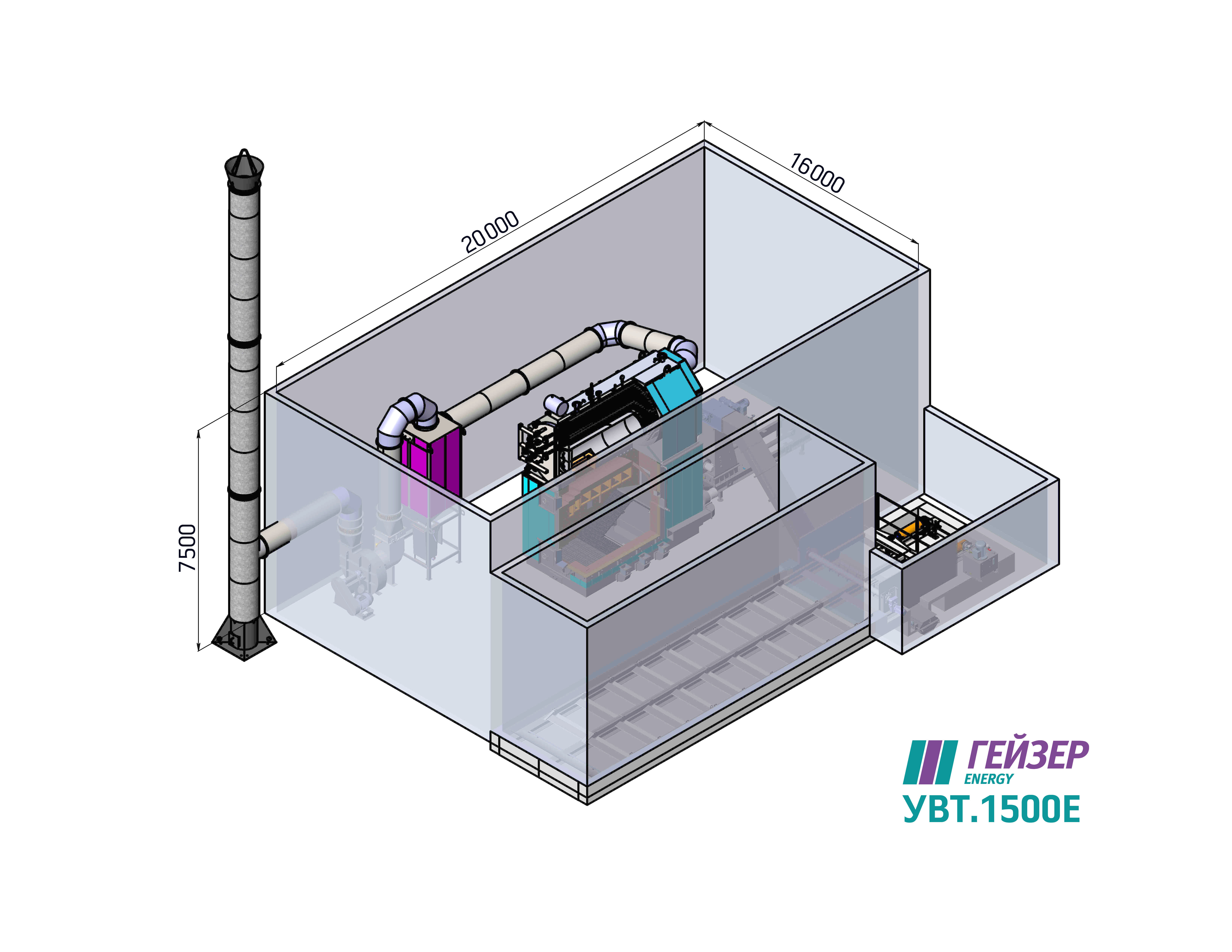

UVT.1500E

Name of indicators

Indicator

Boiler rated heat output, kW

1500

Boiler minimum heat output, kW

450

Estimated type of fuel (wood chips, sawdust) GOST 33103.1-2014

- relative moisture, %

- calorific value, MJ/kg (kcal/kg)

- fuel consumption, kg/h

Р46А

60

5,7(1360)*

1227*

КПД, до %

86*

Design pressure, MPa (kgf/cm2)

0,6 (6,0)

Rated heat carrier flow temperature at the boiler inlet, °C

70

Rated heat carrier flow temperature at the boiler outlet, °C

95

Minimum permissible heat carrier flow rate, m3/h

51,5

Maximum heat carrier flow temperature, °C

110

Minimum heat carrier flow temperature, °C

70

Exit gas temperature (max), °C

150*

Сombustion products oxygen content, %

   7,5

Installed electric power, kW

10,25

Boiler weight (dry), kg

Furnace weight, kg

Heat exchanger weight, kg

Afterburning chamber weight, kg

26000

16500

9500

-

Boiler overall dimensions, mm:

Length (L)

Width (W)

Height (H)



5105

3295

5760
